Concrete/Steel 50 tonne Cattle Grid (Trackway)
Deer Grid Option Available – No
Drop-in Design – Yes

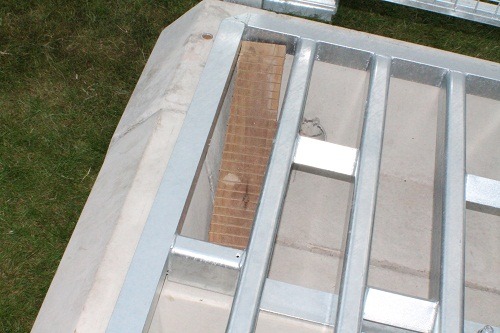

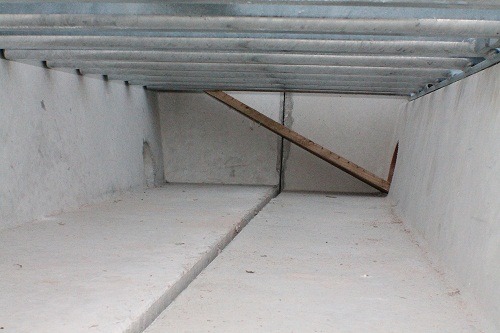

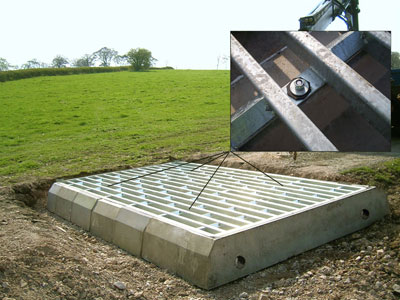

The quick fit Trackway Cattle Grid features special reinforced concrete base sections which allow installation in a matter of hours rather than days.
No poured concrete, shuttering or block work is required, so the trackway is ideal for busy trackways which cannot be out of use for long. All you need is a hole !
The Trackway Grid provides an especially useful solution in locations with an inclined track way.
The Trackway Grid is competitively priced and is ideal for agricultural, forestry and estate use.
The design conforms to BS4008:2006 & BD37/01 and is suitable for applications where full HGV loadings are required. Axle loading 10.5 tonnes.
All steelwork is galvanised to BS EN ISO 1461:2009 and requires practically no maintenance.
Various widths are available and optional side fencing can be supplied.
All Steel 50 tonne Cattle Grid
Deer Grid Option Available – Yes
Drop-in Design – Yes
Our all steel drop-in style cattle grid is an ideal alternative to the concrete / steel cattle grid, when flexibility of size is required.
This cattle grid can be manufactured in almost any size or shape.
The all steel grid can be palletised for economical delivery to those hard to reach location.

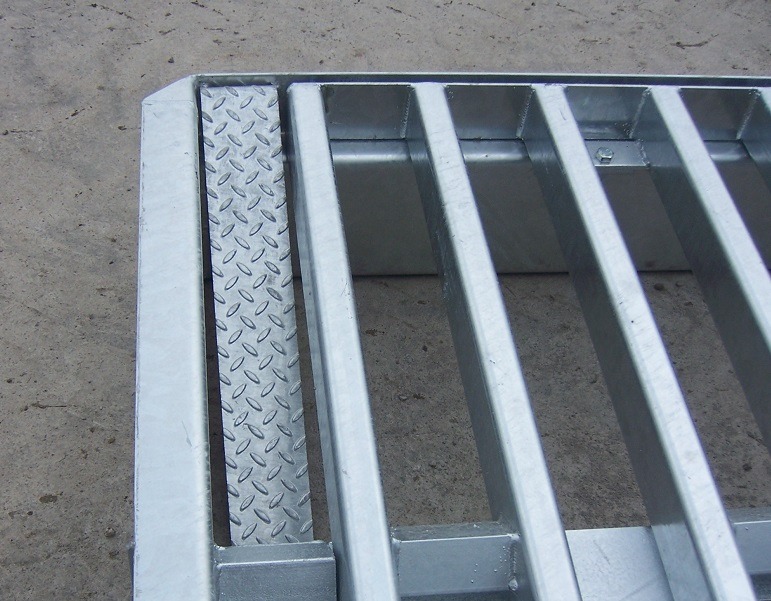

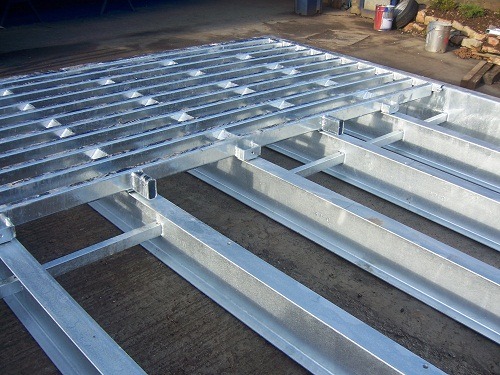

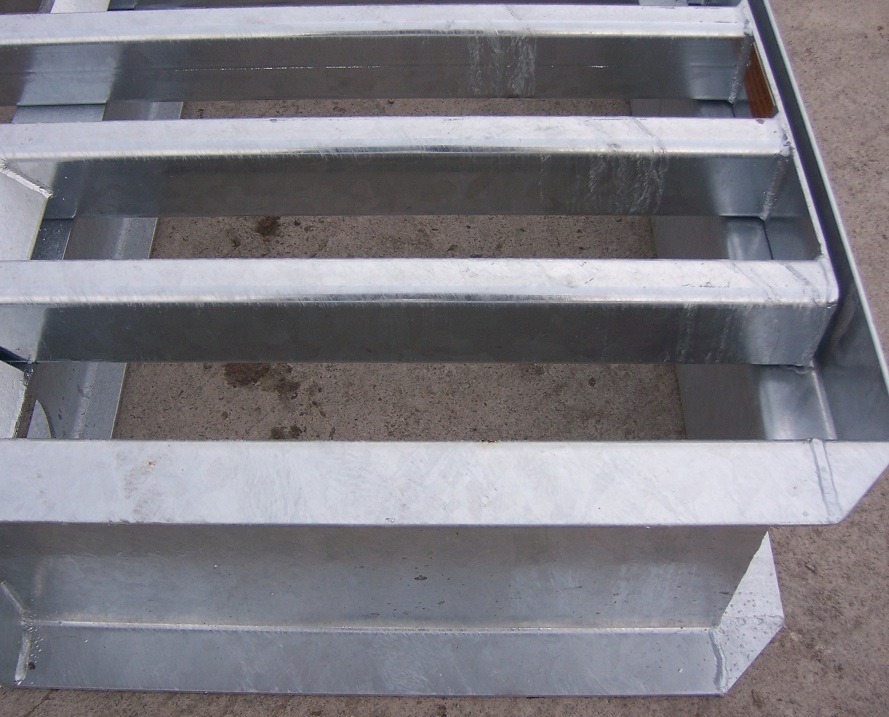

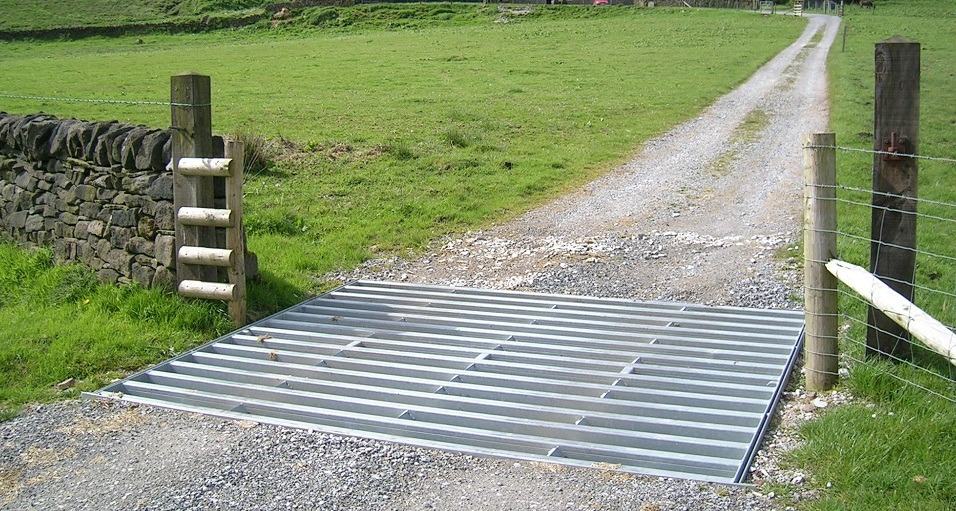

Standard 50 tonne full view Close up Deer Deer Grid – half naked All steel 50 tonne installed
PreviousNext
The grid is available as a cattle grid or a deer grid and is manufactured as standard using rectangular hollow section bars 6mm thick. If preferred the grid can be manufactured from 76.1mm circular hollow section bars.
This is a very heavy and robust grid which is suitable for all applications where HGV loadings are required. Axle loading 10.5 tonnes.
